First, you must create the keys on both devices. We recommend using at least 1024-bit keys in production networks: Router1#configure terminal Enter configuration commands, one per line. End with CNTL/Z. Router1(config)#crypto key generate rsa The name for the keys will be: Router1.oreilly.com Choose the size of the key modulus in the range of 360 to 2048 for your General Purpose Keys. RFC 4432 SSH RSA Key Exchange March 2006 The key KT is encoded according to the 'ssh-rsa' scheme described in Section 6.6 of RFC4253.Note that unlike an 'ssh-rsa' host key, KT is used only for encryption, and not for signature. The modulus of KT MUST be at least MINKLEN bits long. I always generate 4096 bit keys since the downside is minimal (slightly lower performance) and security is slightly higher (although not as high as one would like). Larger keys like 8192 bit or even larger take forever to generate and require specially patched sw to use so are impractical. Luckily there are other algorithms slowly replacing rsa. Cisco kron script to generate SSH key Hi there, Here's what I'm trying to accomplish: I want to copy a text file with my config to my routers. When I'm ready, I'll copy the config from flash over to the startup config so that when it boots back up, it becomes a different router. Oct 28, 2014 crypto key generate rsa label SSH-KEY modulus 4096. The RSA-Keypair is assigned to the SSH-config: ip ssh rsa keypair-name SSH-KEY. Next we only allow SSH version 2. By default also version 1 is allowed: ip ssh version 2. When the SSH-session is established, the session-keys are computed with the Diffie-Hellmann key exchange protocol.

  • October 2, 2015
  • Posted by: Syed Shujaat
  • Category: Cisco, Networking Solutions

Use this command to generate RSA key pairs for your Cisco device (such as a router). keys are generated in pairs–one public RSA key and one private RSA key.

If your router already has RSA keys when you issue this command, you will be warned and prompted to replace the existing keys with new keys.

NOTE: Before issuing this command, ensure that your router has a hostname and IP domain name configured (with the hostname and ipdomain-name commands).

You will be unable to complete the cryptokeygeneratersacommand without a hostname and IP domain name. (This situation is not true when you generate only a named key pair.)

Here are the steps to Enable SSH and Crypto Key setup : 2 config must requried for SSH

1 Setup Local VTY line User ID and password

Crypto Key Generate Rsa Label Ssh-key Modulus 4096 For Sale

router (Config) # Line VTY 0 15

router (Config-line)# login local

router (Config-line)# Exit

!!! create local login ID/Pass

router (Config)# username [loginid] password [cisco]

Crysis

router (Config)# username loginid1 password cisco1

2. router (Config)# ip domain-name example.com

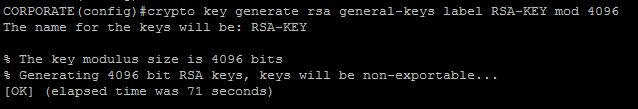

router (Config)# crypto key generate rsa

how many bits in the modulus [512] :1024

router (Config)# ip ssh version2

router (Config)# CTRL Z


Note

Secure Shell (SSH) may generate an additional RSA key pair if you generate a key pair on a router having no RSA keys. The additional key pair is used only by SSH and will have a name such as {router_FQDN }.server.

For example, if a router name is “router1.cisco.com,” the key name is “router1.cisco.com.server.”

This command is not saved in the router configuration; however, the RSA keys generated by this command are saved in the private configuration in NVRAM (which is never displayed to the user or backed up to another device) the next time the configuration is written to NVRAM.

Modulus Length

When you generate RSA keys, you will be prompted to enter a modulus length. The longer the modulus, the stronger the security. However, a longer modules take longer to generate (see the table below for sample times) and takes longer to use.

The size of Key Modulus range from 360 to 2048. Choosing modulus greater than 512 will take longer time.

Router360 bits512 bits1024 bits2048 bits (maximum)
Cisco 250011 seconds20 seconds4 minutes, 38 secondsMore than 1 hour
Cisco 4700Less than 1 second1 second4 seconds50 seconds

Cisco IOS software does not support a modulus greater than 4096 bits. A length of less than 512 bits is normally not recommended. In certain situations, the shorter modulus may not function properly with IKE, so we recommend using a minimum modulus of 2048 bits.

Syntax Description : Optional Strings to embed with SSH Crypto key

Number
general-keys(Optional) Specifies that a general-purpose key pair will be generated, which is the default.
usage-keys(Optional) Specifies that two RSA special-usage key pairs, one encryption pair and one signature pair, will be generated.
signature(Optional) Specifies that the RSA public key generated will be a signature special usage key.
encryption(Optional) Specifies that the RSA public key generated will be an encryption special usage key.
labelkey-label(Optional) Specifies the name that is used for an RSA key pair when they are being exported.If a key label is not specified, the fully qualified domain name (FQDN) of the router is used.
exportable(Optional) Specifies that the RSA key pair can be exported to another Cisco device, such as a router.
modulusmodulus-size(Optional) Specifies the IP size of the key modulus.By default, the modulus of a certification authority (CA) key is 1024 bits. The recommended modulus for a CA key is 2048 bits. The range of a CA key modulus is from 350 to 4096 bits.
Note Effective with Cisco IOS XE Release 2.4 and Cisco IOS Release 15.1(1)T, the maximum key size was expanded to 4096 bits for private key operations. The maximum for private key operations prior to these releases was 2048 bits.
storagedevicename:(Optional) Specifies the key storage location. The name of the storage device is followed by a colon (:).
redundancy(Optional) Specifies that the key should be synchronized to the standby CA.
ondevicename:(Optional) Specifies that the RSA key pair will be created on the specified device, including a Universal Serial Bus (USB) token, local disk, or NVRAM. The name of the device is followed by a colon (:).Keys created on a USB token must be 2048 bits or less.
CommandDescription
copyCopies any file from a source to a destination, use the copy command in privileged EXEC mode.
cryptokeystorageSets the default storage location for RSA key pairs.
debugcryptoengineDisplays debug messages about crypto engines.
hostnameSpecifies or modifies the hostname for the network server.
ipdomain-nameDefines a default domain name to complete unqualified hostnames (names without a dotted-decimal domain name).
showcryptokeymypubkeyrsaDisplays the RSA public keys of your router.
show crypto pki certificatesDisplays information about your PKI certificate, certification authority, and any registration authority certificates.
